Product Specifications
| Item | Unit | AR-1580 |
| X/Y/Z Axis Travel | mm | 1500/800/700 |
| Spindle Nose to Table Distance | mm | 160-860 |
| Z-axis Guard Distance from Spindle Center | mm | 855 |
| Table Size | mm | 1600*800 |
| T-slot (Width * Number) | mm | 7-22 |
| Maximum Load Capacity | kgs | 1500 |
| Spindle Motor Power | kw | 15 |
| Spindle Speed | r.p.m | 8000 |
| Spindle Drive Type | Belt | |
| Taper | # | BT-50 |
| Three-axis Rapid Traverse | m/min | 20/20/20 |
| Cutting Feed Rate | mm/min | 1-10000 |
| Positioning Accuracy | mm | 0.006/300mm |
| Repeatability Accuracy | mm | 0.003/300mm |
| Ball Screw Specification | mm | 5010/5010/5010 |
| Linear Guide Way (RGW) | Pcs | 55HC/45HC/55HC |
| Number of Tools | Pieces | 24 |
| Tool Holder Specification | BT-50 | |
| Tool Changing Device | Disc Type | |
| Tool Weight | kgs | 15 |
| Coolant Tank Capacity | L | 250 |
| Electrical Capacity | KVA | 35 |
| Weight (Approx.) | kgs | 10000 |
| Air Pressure Requirement | kgf | ≥6.0 |
| Required Floor Space (L*W*H) | mm | 4310*3100*3200 |
Product Details
Product Details

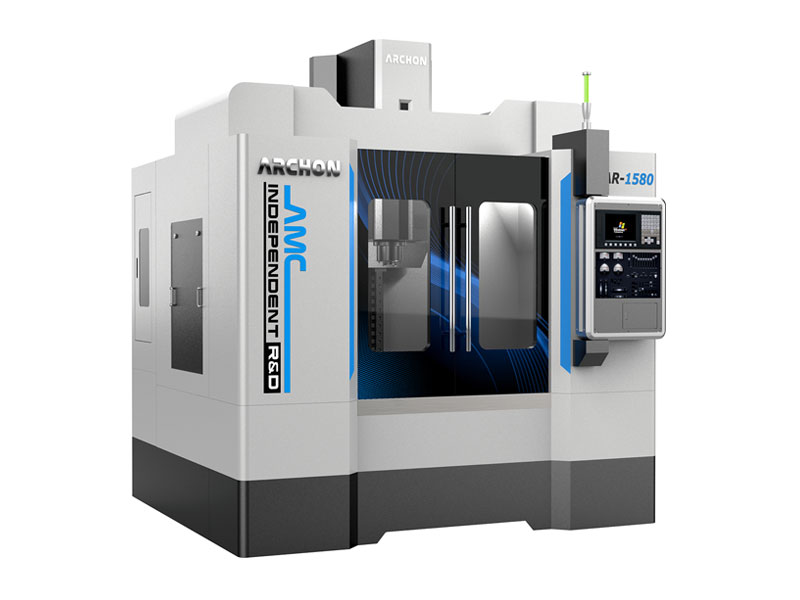

AR-1580

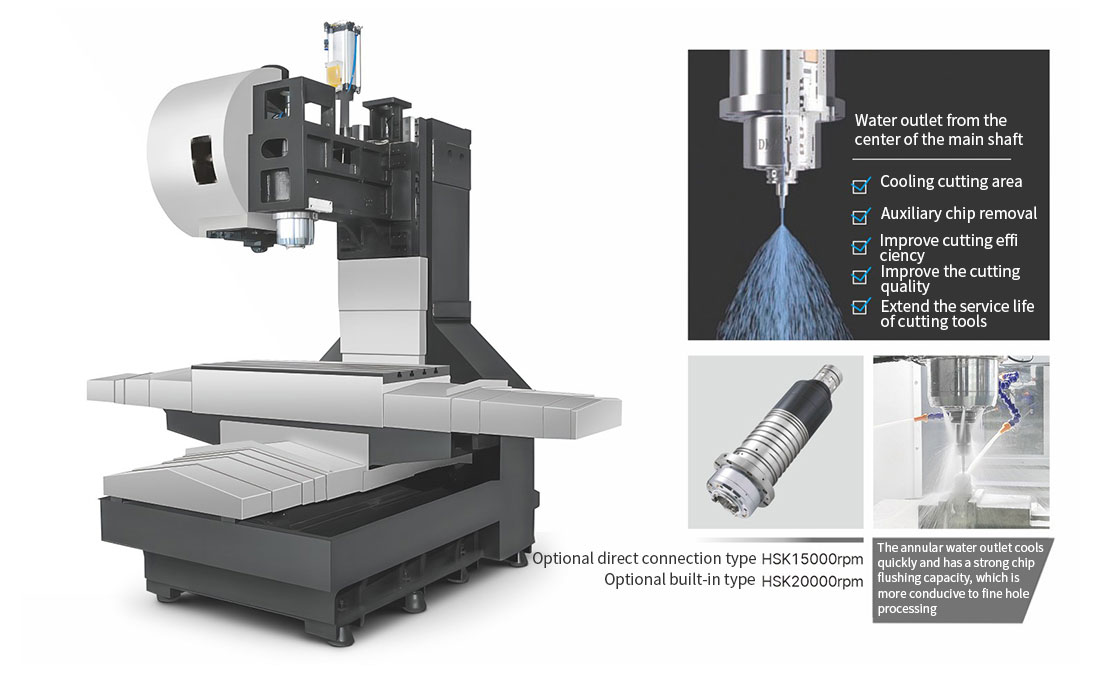

The three axes use ultra-high rigidity roller-type linear guides, combining the heavy cutting rigidity of a hard rail with the fast movement of linear guides, offering high precision and low wear characteristics. Z-axis adopts a brake-equipped servo motor, combined with a counterweight-free balanced design, and enhances Z-axis driving performance. When performing 3D high-speed machining, it can achieve the best surface finishing effect and accuracy. An optional direct-drive spindle is available for optimal transmission efficiency and superior workpiece surface finish. The extra-large base design with an "A"-frame box structure ensures maximum rigidity and stability during rapid movements.Product Applications
