Product Specifications
| Item | Unit | AR-850L |
| X/Y/Z Axis Travel | mm | 800/500/500 |
| Spindle Nose to Table Distance | mm | 110-610 |
| Distance from Spindle Center to Column Surface | mm | 560 |
| Table Size | mm | 1000*500 |
| T-slot (Width * Number) | mm | 5-18*90 |
| Maximum Load Capacity | kgs | 500 |
| Spindle Motor Power | kw | 11 |
| Spindle Speed | r.p.m | 10000 |
| Spindle Drive Type | Belt | |
| Taper | # | BT-40/gb |
| Three-axis Rapid Traverse | m/min | |
| Cutting Feed Rate | mm/min | 1-10000 |
| Positioning Accuracy | mm | 0.006/300mm |
| Repeatability Accuracy | mm | 0.003/300mm |
| Ball Screw Specification | mm | 4012/4012/4012 |
| Roller Linear Guide Specification | Pcs | JDOEAIJDOEAI Hard Rail |
| Number of Tools | Pieces | 24 |
| Tool Holder Specification | BT-40 | |
| Tool Changing Device | Automatic Tool Change | |
| Tool Weight | kgs | 7 |
| Coolant Tank Capacity | L | 220 |
| Electrical Capacity | KVA | 25 |
| Weight | kgs | 6000 |
| Air Pressure Requirement | kgf | ≥6.0 |
| Required Floor Space (L*W*H) | mm | 2800x2350x2600 |
Product Details
Product Details
AR-850L

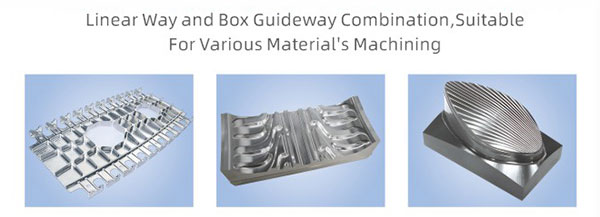

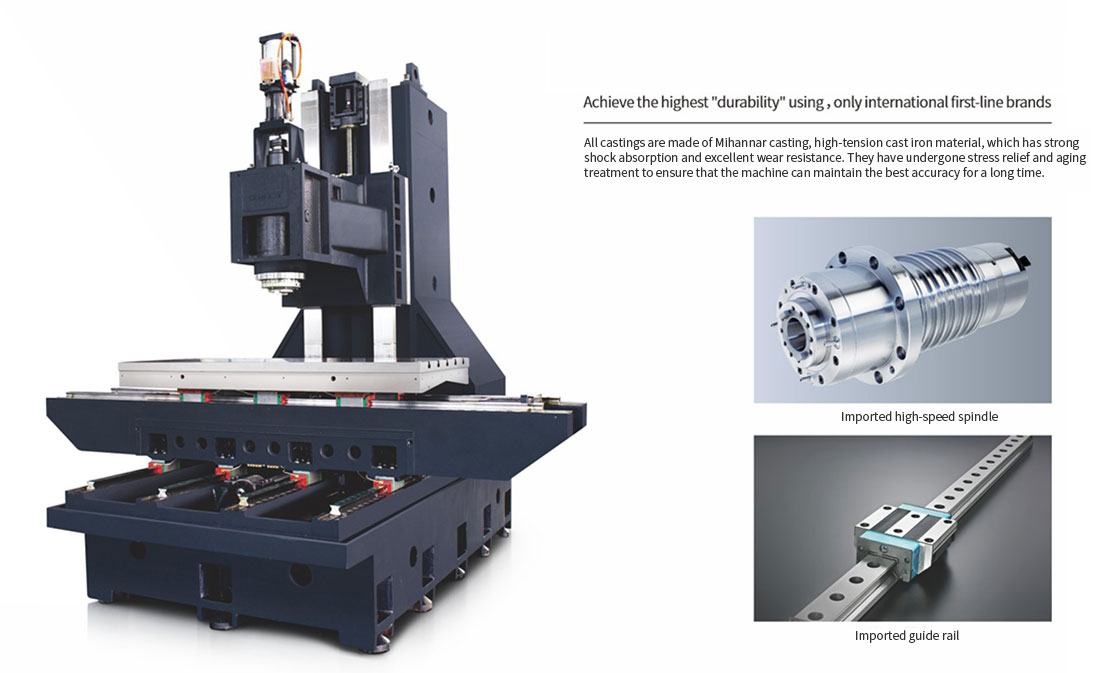

The X and Y axes are equipped with high-rigidity precision linear guides, combined with high-precision C3-grade ball screws. Driven by high-torque, low-noise, and highly stable AC CNC servo motors, it provides various machining speeds for different materials. The precision ball screw works closely with the high-speed movement and high-load linear guides and coupling to ensure stability during the machining process.Product Applications
