Product Specifications
| Item | Unit | AR-600 | |
| X/Y/Z Travel | mm | 650/600/550 | |
| Maximum Rotation Angle of A-axis | ° | ±120° | |
| Maximum Rotation Angle of C-axis | ° | 360° | |
| Distance from Spindle Nose to Worktable (Table Surface 0) | mm | 120-670 | |
| Table Size | mm | 600 | |
| Maximum Load Capacity | kg | 400 | |
| Spindle Speed | rpm | 18000 | |
| Spindle Power | kW | 15 | |
| Spindle Interface | HSKA63 | ||
| Number of Tools | pcs | 24/32 | |
| Maximum Tool Length | mm | 260 | |
| Maximum Tool Diameter | mm | 80/120 | |
| Maximum Tool Weight | kg | 8 | |
| XYZ Rapid Traverse | m/min | 40/40/40 | |
| Maximum Cutting Feed Rate | m/min | 20 | |
| AC Axis Rapid Traverse | rpm | 20 | |
| Positioning Accuracy / Repeatability Accuracy | X/Y Axis | mm | 0.008 |
| Z Axis | mm | 0.01 | |
| AC Axis | arcsec | 16/8 | |
| Machine Height | mm | 3500 | |
| Floor Space | mm | 5200X4000 | |
| Machine Weight | ton | 7 | |
| Ball Screw | / | 40/40/40 | |
| Linear Guide | / | 45 | |
| Air Pressure Requirement | / | 0.6MPa | |
| Power Requirement | / | 3-AC380 | |
Product Details
Product Description
AR-600

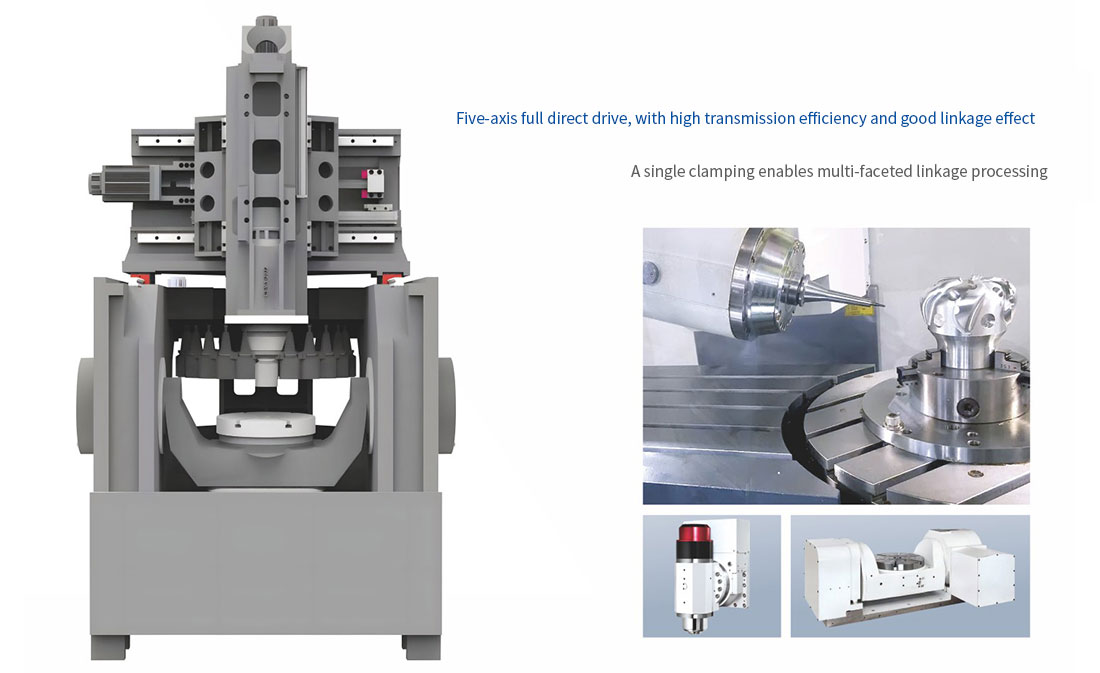

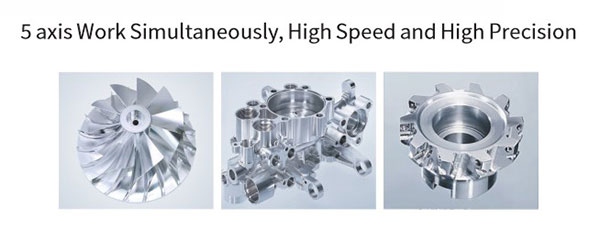

Artificial marble bed with low thermal expansion coefficient, resistant to deformation. Monolithic bed design provides high damping capacity and excellent vibration resistance. A/C axes use direct drive torque motors with high torque and precision. Cradle-type rotary table with central drive effectively suppresses vibration and eliminates backlash. High-speed, high-torque electric spindle ensures high speed and precision. Five-axis surface machining can be achieved in a single setup.Product Applications
