Product Specifications
| Two Linear and One Hard Rail | |||
| Item | Unit | AR-1614 | |
| X/Y/Z Axis Travel | mm | 1600/1400/600 | |
| Spindle Nose to | (Vertical Milling Head) | mm | 180-780 |
| (Horizontal Milling Head) | mm | 1410 | |
| Table Size | mm | 1700*1200 | |
| Maximum Load Capacity | ton | 3 | |
| Table T-slot | 7-18*150 | ||
| Spindle Speed | rpm | 12000 | |
| Spindle Power | kw | 11 | |
| Spindle Interface | BT40-150 | ||
| Number of Tools | pcs | 24 | |
| Tool Holder Specification | mm | BT40 | |
| Tool Changing Device | mm | Automatic Tool Change | |
| Tool Weight | kg | 7 | |
| Recommended X/Y/Z Axis Motor Power | kw | 453/453/453 | |
| X/Y/Z Axis Drive Type | Direct Coupling | ||
| X/Y/Z Axis Ball Screw Specification | 5010/5010/5010 | ||
| X/Y/Z Axis Linear Guide Specification | 45 Roller / 45 Roller / 45 Roller | ||
| XYZ Rapid Traverse | m/min | 15/15/15 | |
| Maximum Cutting Feed Rate | m/min | 10/10/10 | |
| X/Y/Z Axis Positioning Accuracy | mm | 0.008 | |
| X/Y/Z Axis Repeatability Accuracy | mm | 0.005 | |
| Machine Dimensions | mm | 5000*3400*3400 | |
| Machine Weight | ton | 16 | |
| Power Supply Requirement | kva | 30 | |
| Air Pressure Requirement | kg | ≥6.0 | |

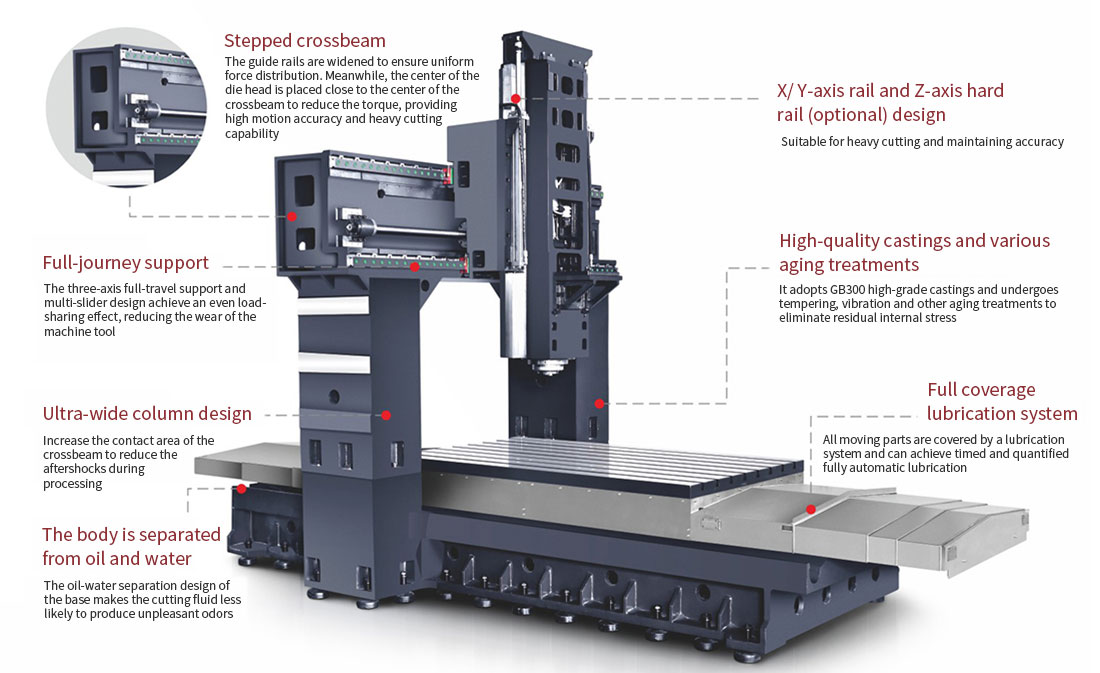

Product Details
