Product Specifications
| Item | Unit | AR-1690L |
| X/Y/Z Axis Travel | mm | 1600/900/600 |
| Spindle Nose to Table Distance | mm | 105-705 |
| Distance from Spindle Center to Column Surface | mm | 950 |
| Table Size | mm | 1800*900 |
| T-slot (Width * Number) | mm | 5-22*165 |
| Maximum Load Capacity | kgs | 1600 |
| Spindle Motor Power | kw | 15~18.5 |
| Spindle Speed | r.p.m | 8000 |
| Spindle Drive Type | Belt | |
| Taper | # | BT-50/gb |
| Three-axis Rapid Traverse | m/min | |
| Cutting Feed Rate | mm/min | 1-8000 |
| Positioning Accuracy | mm | 0.008/300mm |
| Repeatability Accuracy | mm | 0.005/300mm |
| Ball Screw Specification | mm | 5512/5512/5512 |
| Roller Linear Guide Specification | Pcs | MSA55LS/MSA45LS/Hardened Way |
| Number of Tools | Pieces | 24 |
| Tool Holder Specification | BT-50 | |
| Tool Changing Device | Automatic Tool Change | |
| Tool Weight | kgs | 15 |
| Coolant Tank Capacity | L | 300 |
| Electrical Capacity | KVA | 35 |
| Weight | kgs | 15000 |
| Air Pressure Requirement | kgf | ≥6.0 |
| Required Floor Space (L*W*H) | mm | 4500*3100*3300 |
Product Details
Product Details
AR-1690L

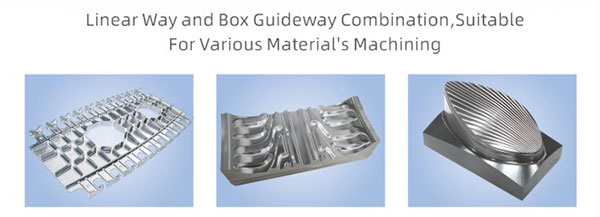

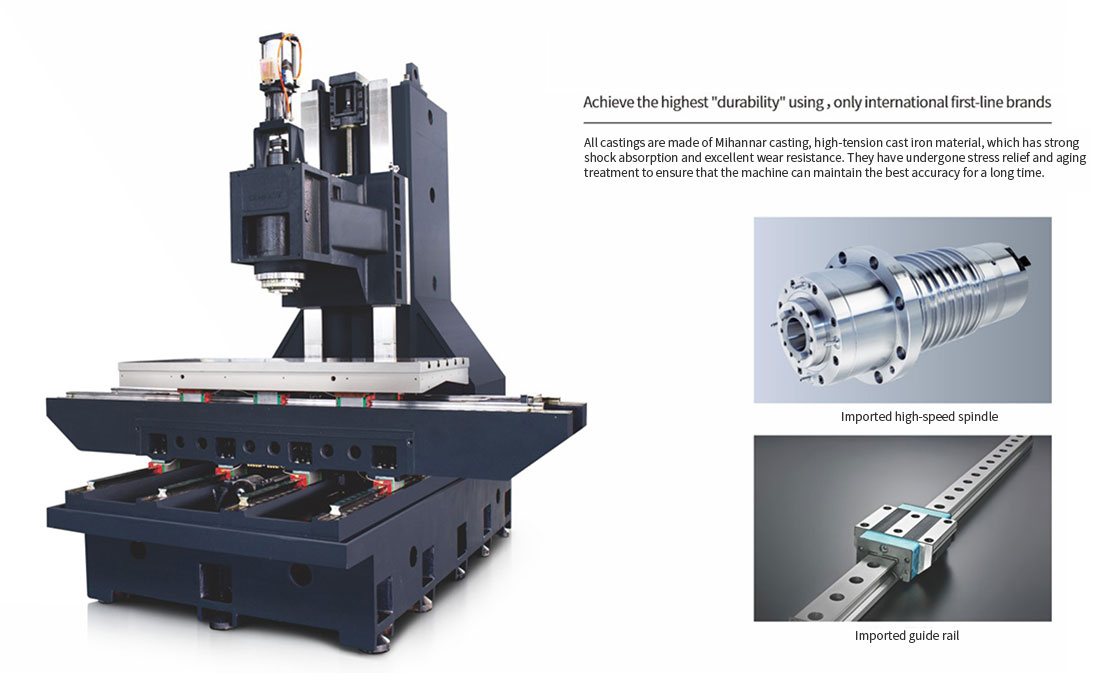

The X and Y axes are equipped with high-rigidity precision linear guides, combined with high-precision C3-grade ball screws. Driven by high-torque, low-noise, and highly stable AC CNC servo motors, it provides various machining speeds for different materials. The precision ball screw works closely with the high-speed movement and high-load linear guides and coupling to ensure stability during the machining process.Product Applications
