Product Specification
| Project | Unit | AR-650 |
| X/Y/ZAxial travel | mm | 600/420/500 |
| From the end face of the main shaft to the worktable | mm | 80-580 |
| Z The surface of the shaft guard is away from the center of the main shaft | mm | 435 |
| Size | mm | 700*420 |
| TType groove (width * number of grooves) | mm | 14*3 |
| Maximum load capacity | kgs | 250 |
| Spindle motor power | kw | 5.5 |
| Spindle speed | r.p.m | 20000 |
| Main shaft drive mode | Direct connection | |
| Taper | # | BT-30 |
| Three-axis rapid feed | m/min | 48/48/48 |
| Cutting feed | mm/min | 1-10000 |
| Positioning accuracy | mm | 0.006/300mm |
| Repeat positioning accuracy | mm | 0.003/300mm |
| Ball screw specifications | mm | XY：Ф28/P16/C3；Z：Ф32/P16/C3 |
| Linear guide specification | Pcs | X/Y30 Ball bearings, Z-axis 35 rollers |
| Number of cutting tools | the | 21 |
| Specification of knife handle 刀柄规格 | BT-30 | |
| Tool changing device | Automatic tool changing | |
| Cutting fluid water tank | L | 220 |
| Power supply capacity | KVA | 15 |
| Weight | kgs | ≈3500 |
| Air pressure demand | kgf | ≥6.0 |
| Land area requirement(L*W*H) | mm | 2000x2100x2500 |
Product details
Product Details
AR-650

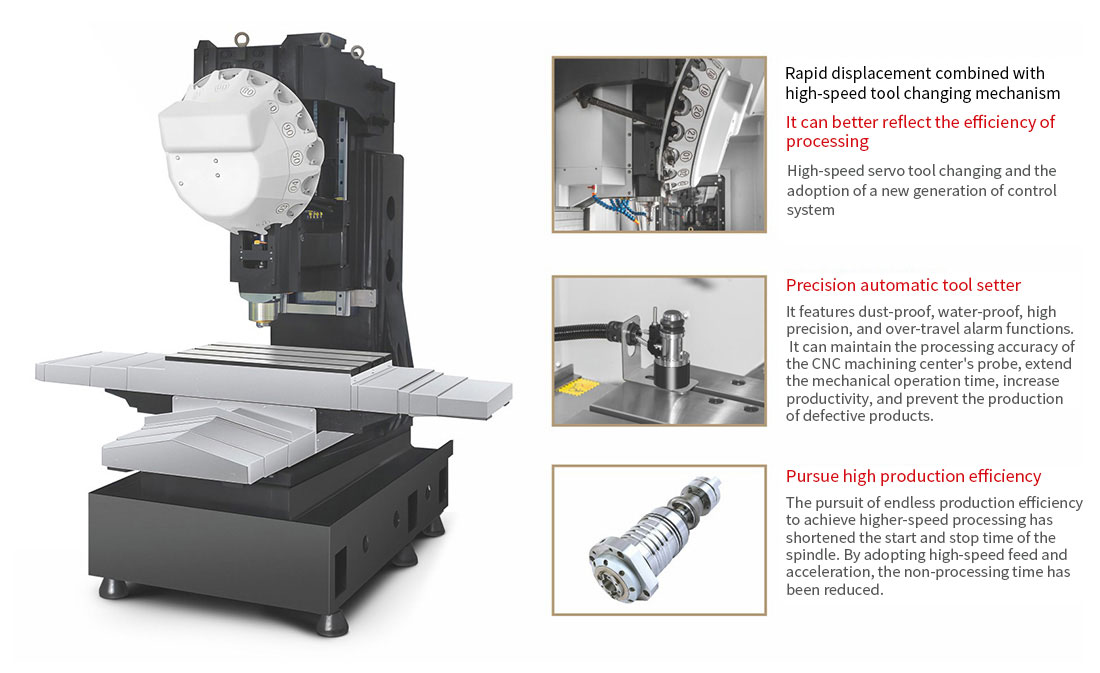

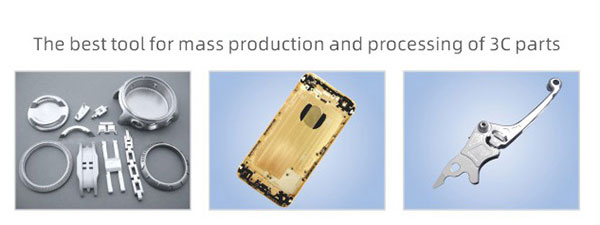

1、The unique large-span structure design of the base and columns is as solid as a rock and as stable as Mount Tai。 2、The direct-coupled high-speed spindle has a sensitive response and the tapping can reach6000rpm。 3、The three-axis rapid displacement is 48(60 meters), significantly reducing the processing time。 4、Raise the column design to reserve space for the installation of the 4th and 5th axes。 5、High-speed servo tool changing is fast and stable, reducing non-processing time。 6、The machine's chip removal adopts a rear row type, featuring the optimal chip removal Angle and a super-large flow chip flushing system。Product application
